Industrial Mesh Welding Machine CH/BH

Efficient manufacturing of industry and fence mesh for all lot sizes

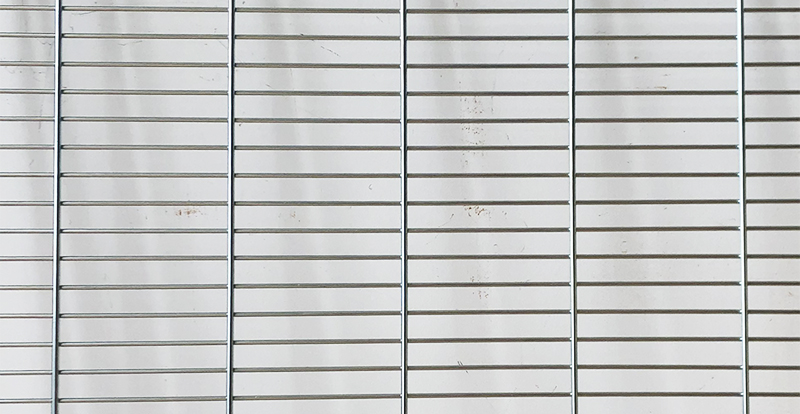

Jiaoyang industrial mesh systems are used for the production of dimensionally accurate meshwork for a wide variety of applications. Industrial mesh may be used to produce shop-, exhibition- and warehouse equipment as well as trays for domestic appliances.

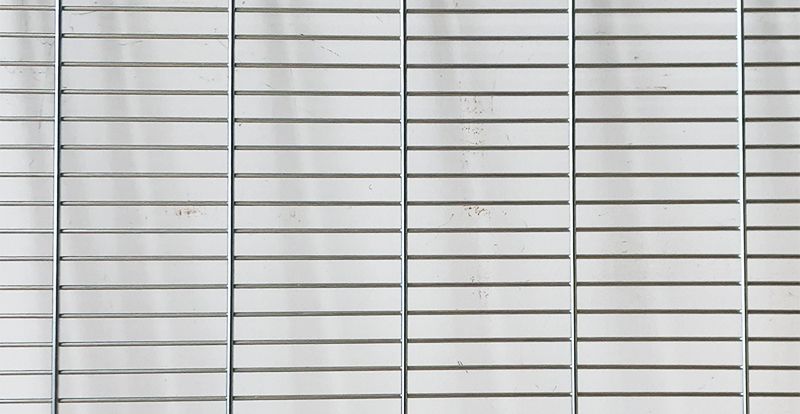

Flat meshes used as gratings, baskets or cages are typical products made out of industrial mesh. Also, shopping carts, shopping baskets, goods displays, shelves and trays in refrigerators, stoves and dishwashers are typical products using industrial mesh.

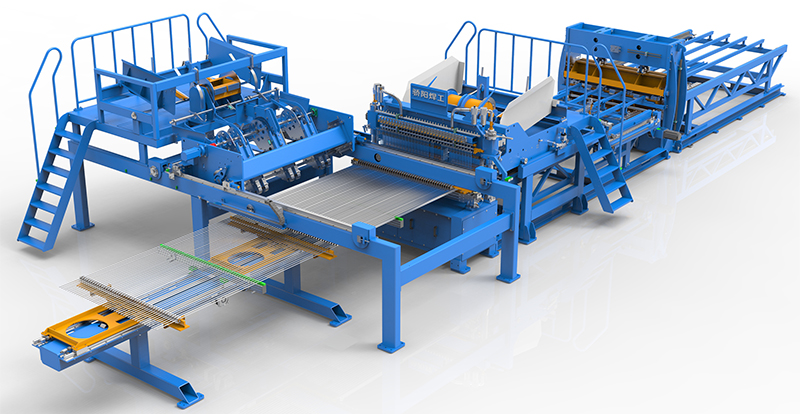

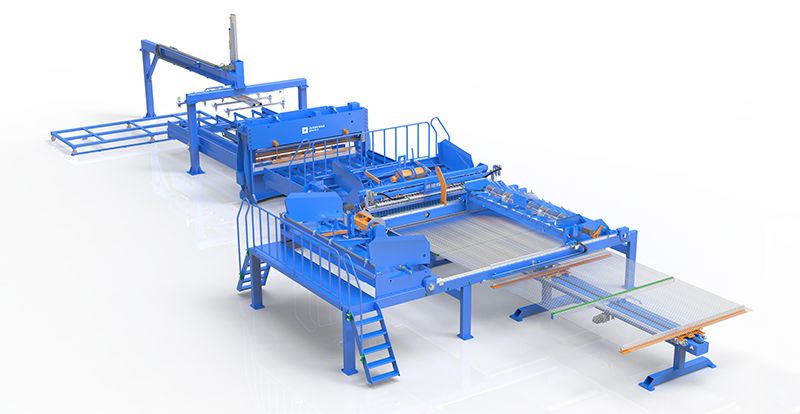

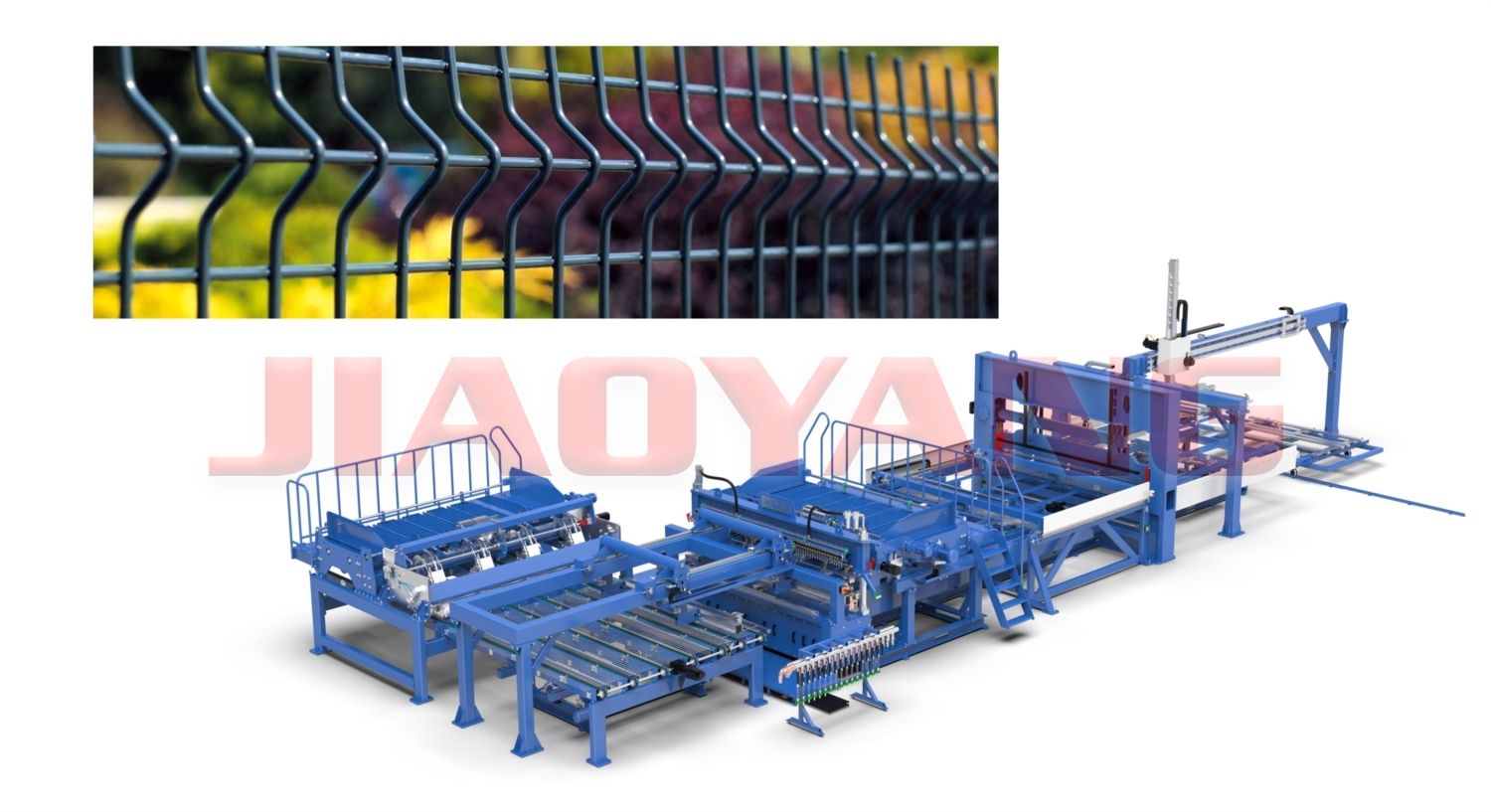

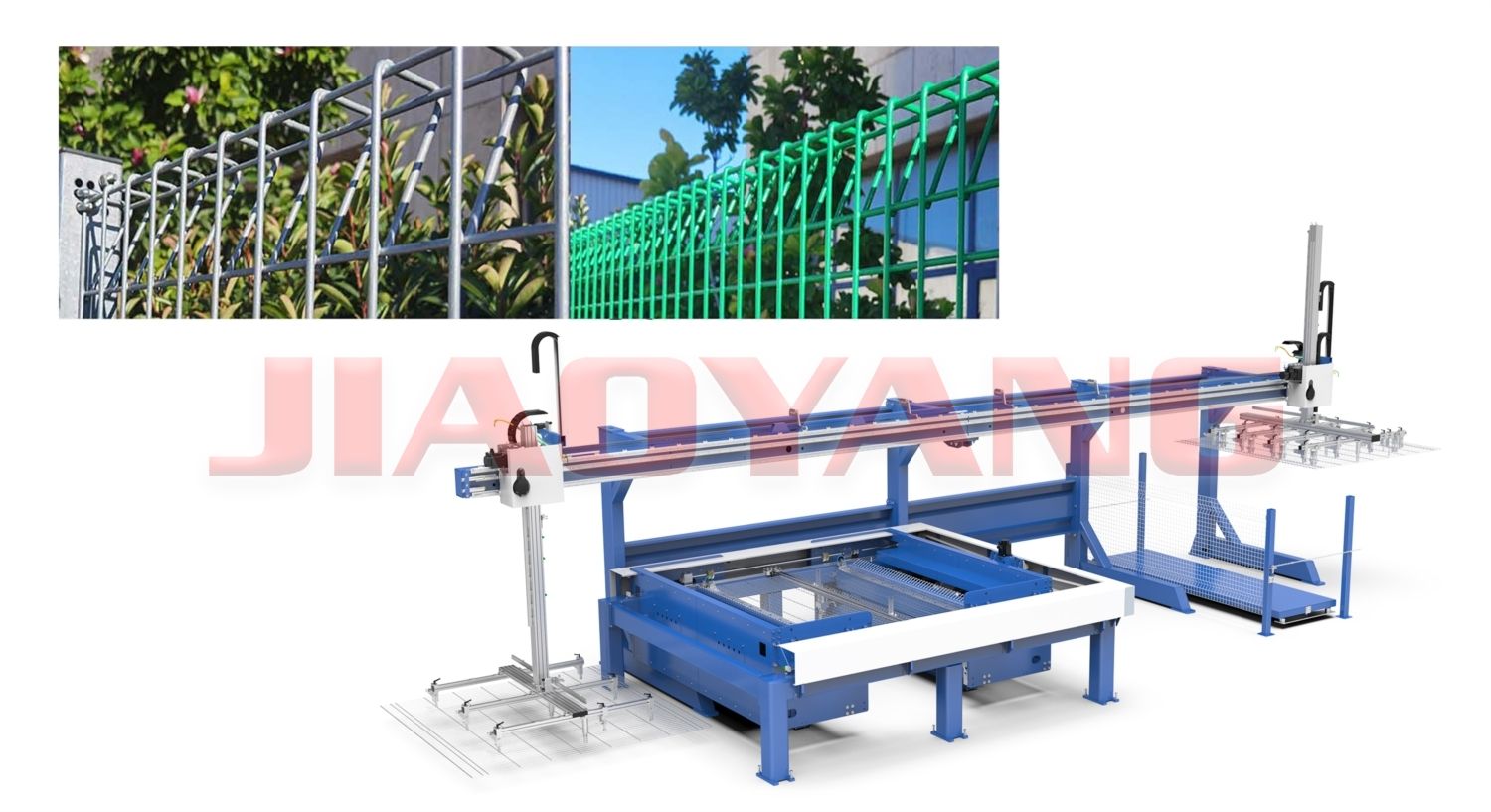

CH-01 Full Automatic 3D Fence Mesh Welding Line

This CH-01 model welds mesh 2500/3000mm wide with 3.0–6.0mm wire. It runs at 2–3 panels per minute, equipped with full feeding, welding, stacking modules for efficient fence mesh production.

Equipment Specification Table and Layout Drawing

CH-01 Full Automatic 3D Fence Mesh Welding Line - Video Link

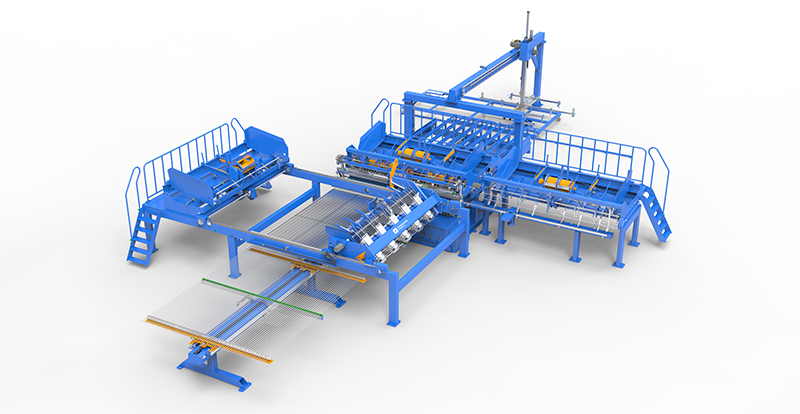

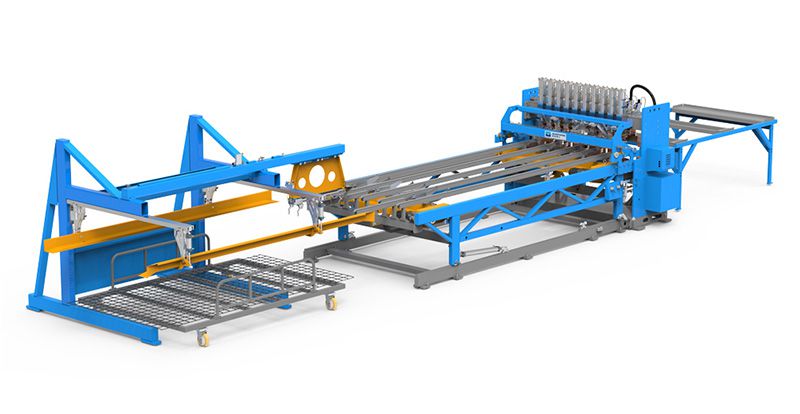

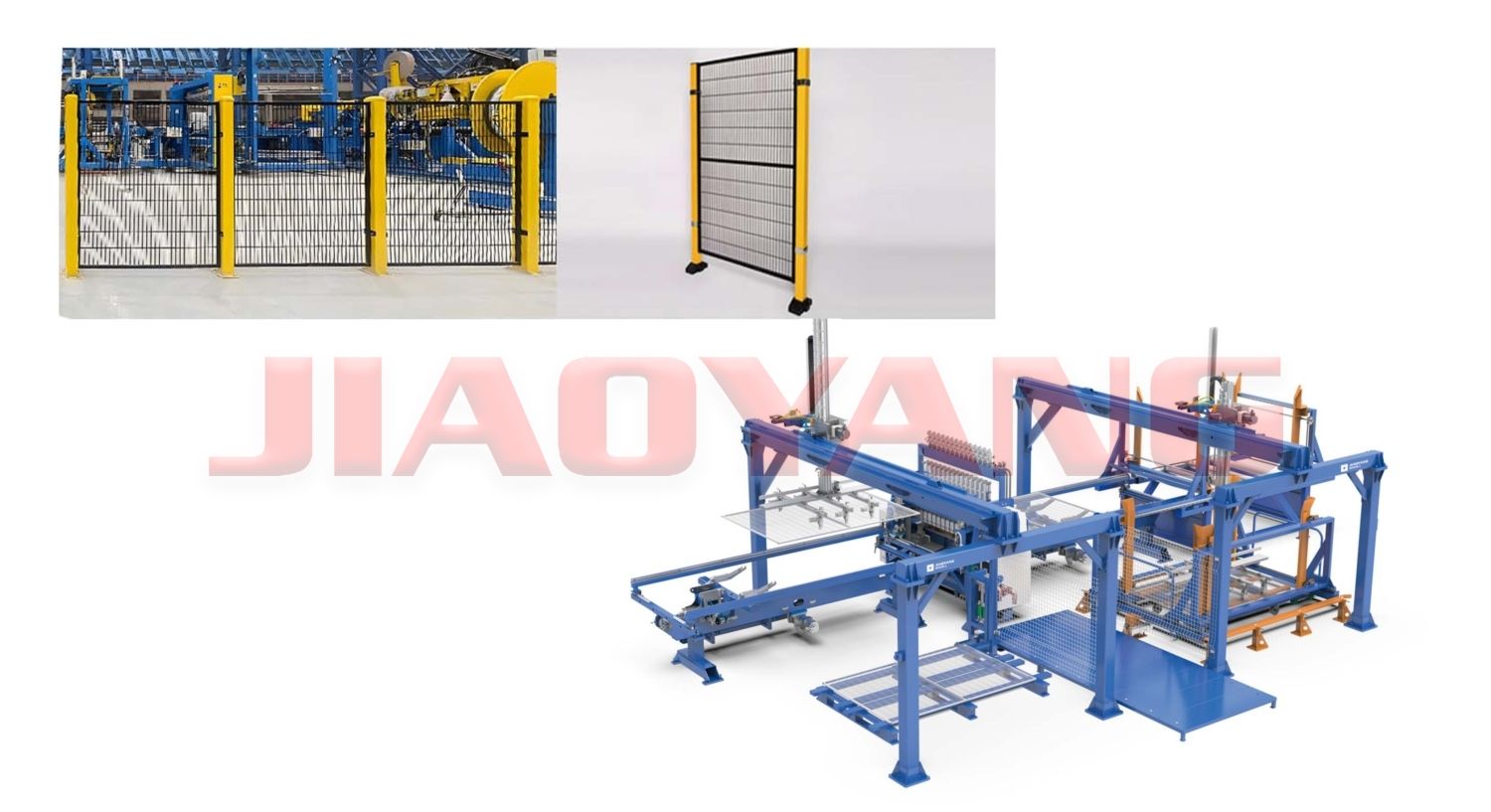

CH-05 Mesh And Frame Welding Machine

This CH-05 model processes 3.0–4mm low-carbon steel wire at 25 welding cycles per minute. It has full standard automatic configurations including picker, welder and stacker, to produce qualified fence mesh with stable performance.

Equipment Specification Table and Layout Drawing

CH-05 Mesh And Frame Welding Machine - Video Link

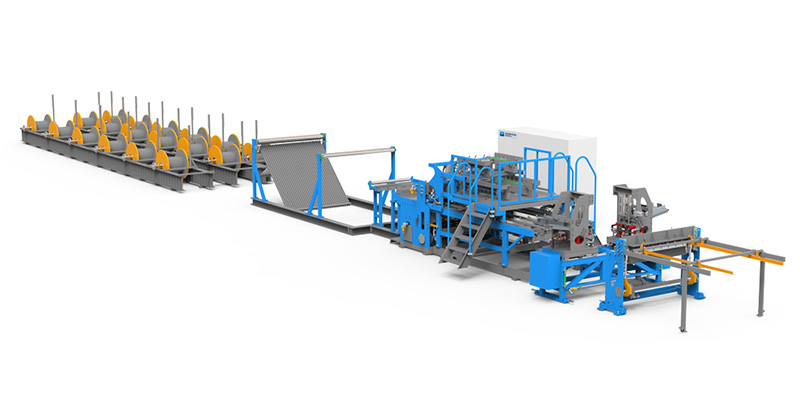

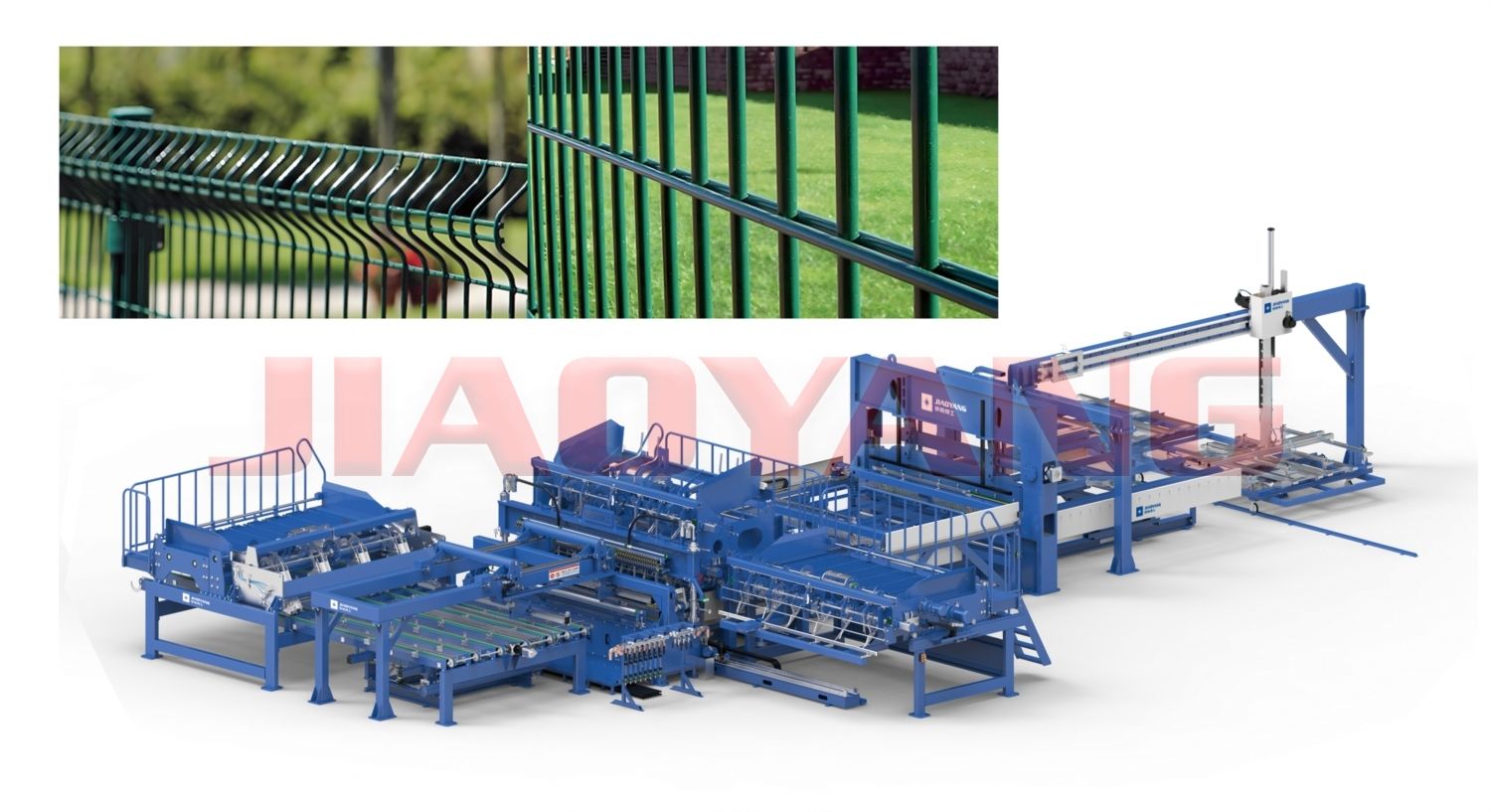

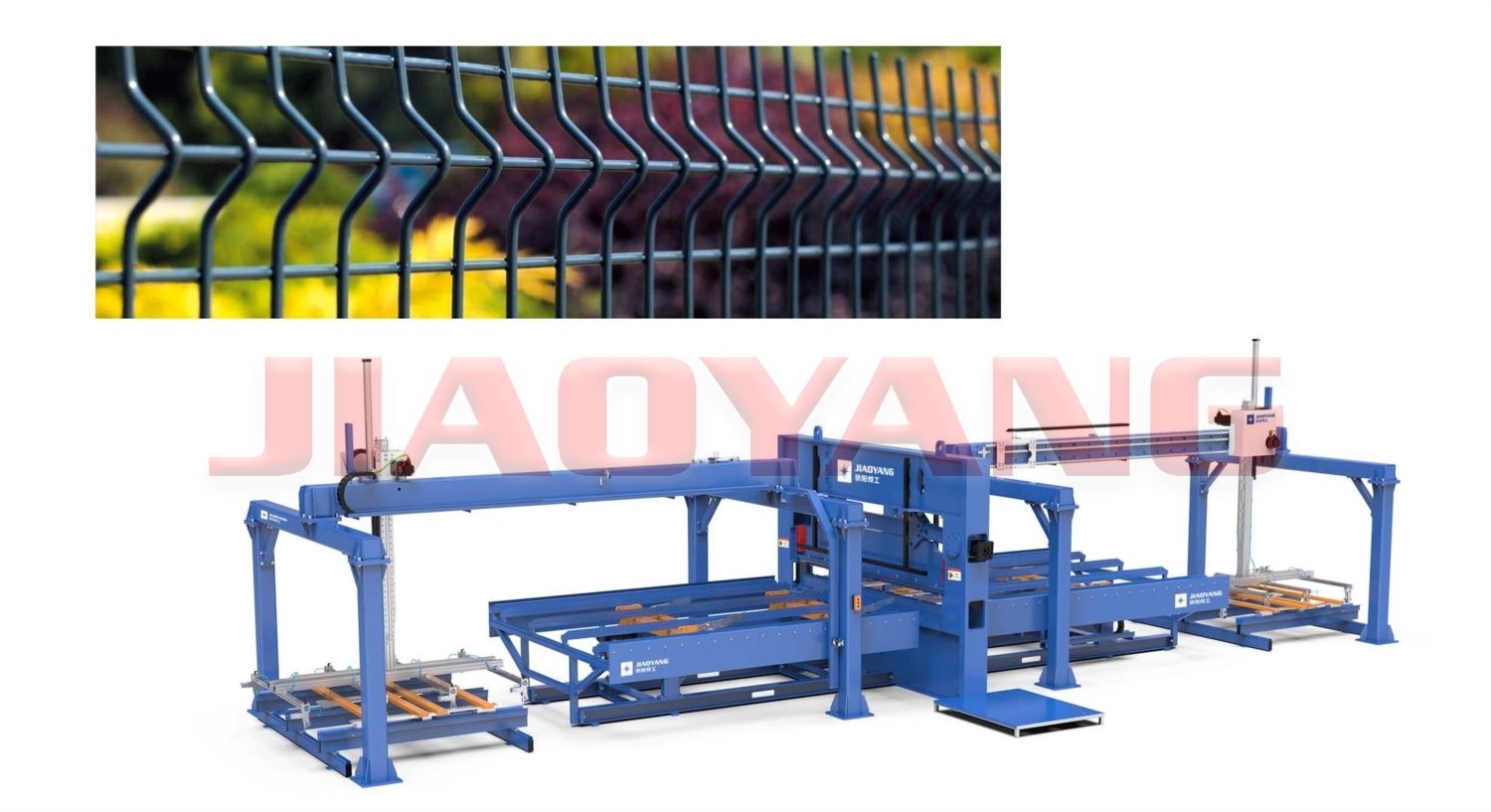

CH-02 Intelligence 2D Fence & 358 Anti Climb Fence Mesh Welding Line

CH-02 Intelligence 2D & 358 anti-climb fence mesh welding line from Jiaoyang Machine suits 3–8mm wire. It supports 2500/3000/3300mm mesh width, runs 2–3 panels per minute, with full standard configurations for stable, efficient fence mesh production.

Equipment Specification Table and Layout Drawing

CH-02 Intelligence 2D Fence & 358 Anti Climb Fence Mesh Welding Line - Video Link

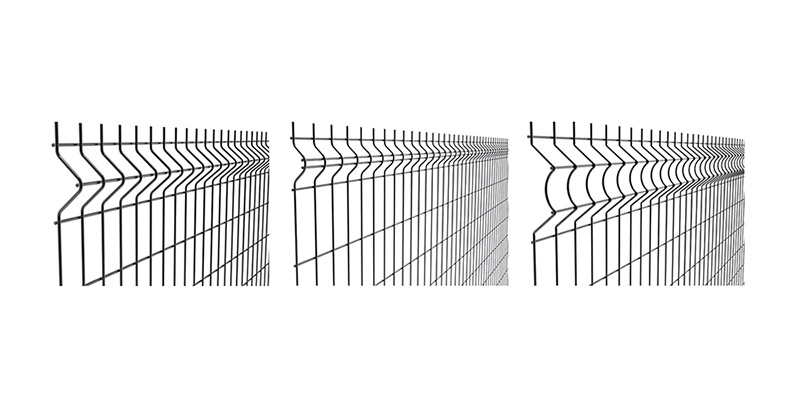

CHP-01 P Type Fence Bending Machine

This hydraulic-powered machine processes 3–6mm wire, with 2500mm bending width and 15.5kW rated power. It bends 1–2 pieces per minute, bends up to 120°, and includes stacking & bending units for steady fence mesh production.

Equipment Specification Table and Layout Drawing

CHP-01 P Type Fence Bending Machine - Video Link

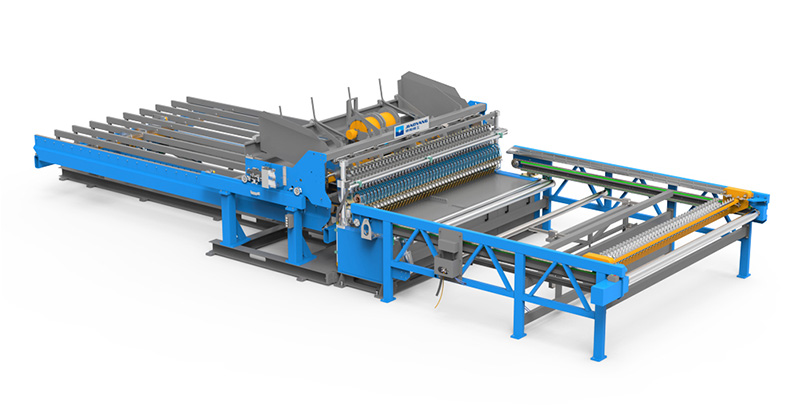

CH-04 Portable Jig Welding Ling

This JIAOYANG model CH-04 welding machine has 2500mm mesh width,14 electrodes, dual 380KVA MFDC transformers, 25 welding cycles per minute, with dual stations and automatic transmission & positioning for customized mesh welding.

Equipment Specification Table and Layout Drawing

CH-04 Portable Jig Welding Ling - Video Link

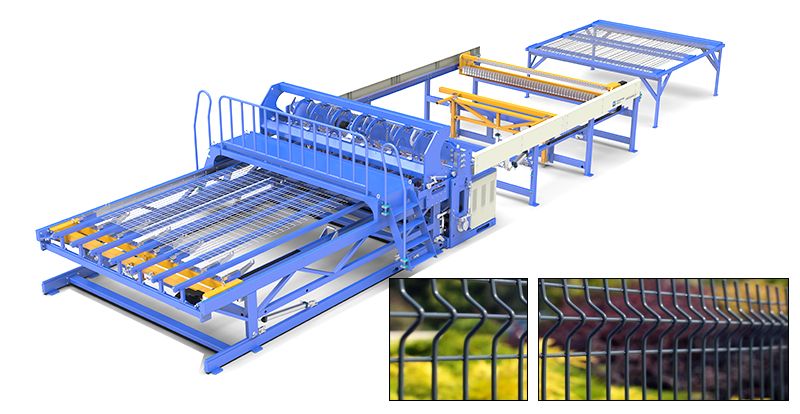

CHV-01 V Type Fence Bending Line

Model CHV-01 handles 3–6mm wire, with 3000mm bending width and 50×50mm minimum mesh spacing. Servo-driven, 15kW power, it supports automatic stacking, delivers up to 100T bending force for fence processing.

Equipment Specification Table and Layout Drawing

CHV-01 V Type Fence Bending Line - Video Link
