Our company is a leading China Welding Machines for Reinforcement Mesh manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Welding Machines for Reinforcement Mesh have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Welding Machines for Reinforcement Mesh services, you can consult us now, we will reply to you in time!

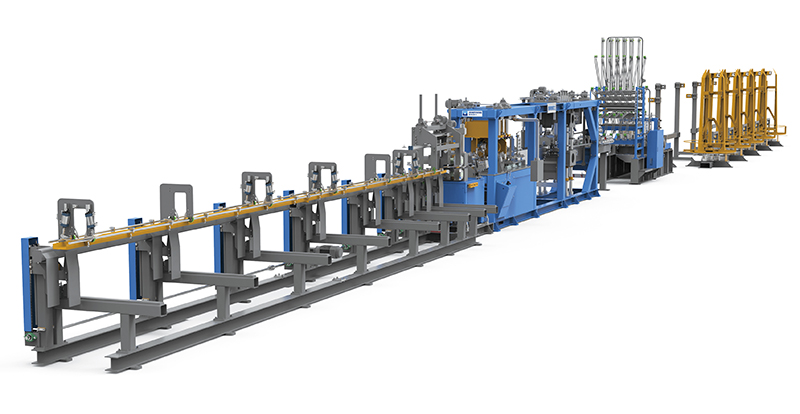

ZH-01 Steel Truss Girders Welding Line

This fully automatic welding line runs at 16m/min, with dual 250KVA transformers. It adapts to truss heights of 70–350mm and varied rebar sizes. Equipped with payoff, bending, welding, cutting and stacking modules, it steadily fabricates steel trusses for construction use.

Equipment Specifications and Layout Drawing

ZH-01 Steel Truss Girders Welding Line - Video Link

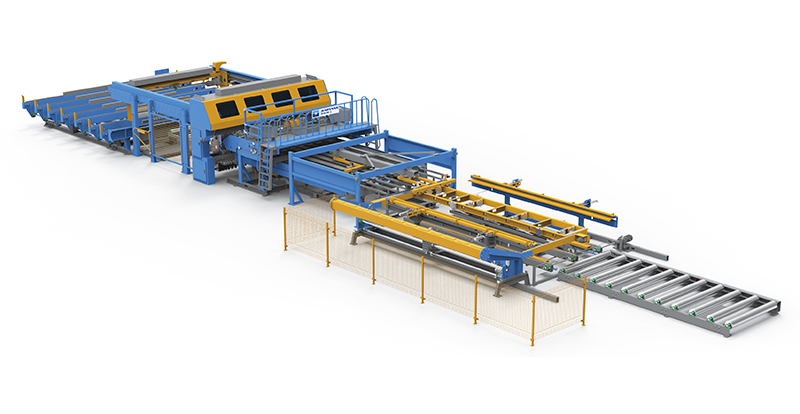

ZH-02 Steel Truss Floor Plate Welding Machine

Model ZH-02 has 600mm mesh width, three 125KVA transformers, 6 electrodes, servo forward feeding. It is equipped with mesh support shelf for stable steel truss floor plate welding work.

Equipment Specification Table and Layout Drawing

ZH-02 Steel Truss Floor Plate Welding Machine - Video Link

CJ-01A Autoclaved Aerated Concrete Mesh Panel Welding Line

Model CJ-01A fabricates mesh panels up to 6m long. It uses low-carbon/galvanized wire, runs 60–80 welds per minute, with full feeding, welding, cutting and mesh unloading assemblies.

Equipment Specification Table and Layout Drawing

CJ-01A Autoclaved Aerated Concrete Mesh Panel Welding Line - Video Link

ZD-02 Fully Automatic Ladder Mesh Welding Machine

ZD-02 fully automatic ladder mesh welding machine makes 300mm-wide panel mesh from low-carbon/galvanized wire (3–6mm diameter). It runs at 60 welding cycles per minute, fitted with full feeding, straightening and cutting modules for steady automated mesh production.

Equipment Specification Table and Layout Drawing

ZD-02 Fully Automatic Ladder Mesh Welding Machine - Video Link

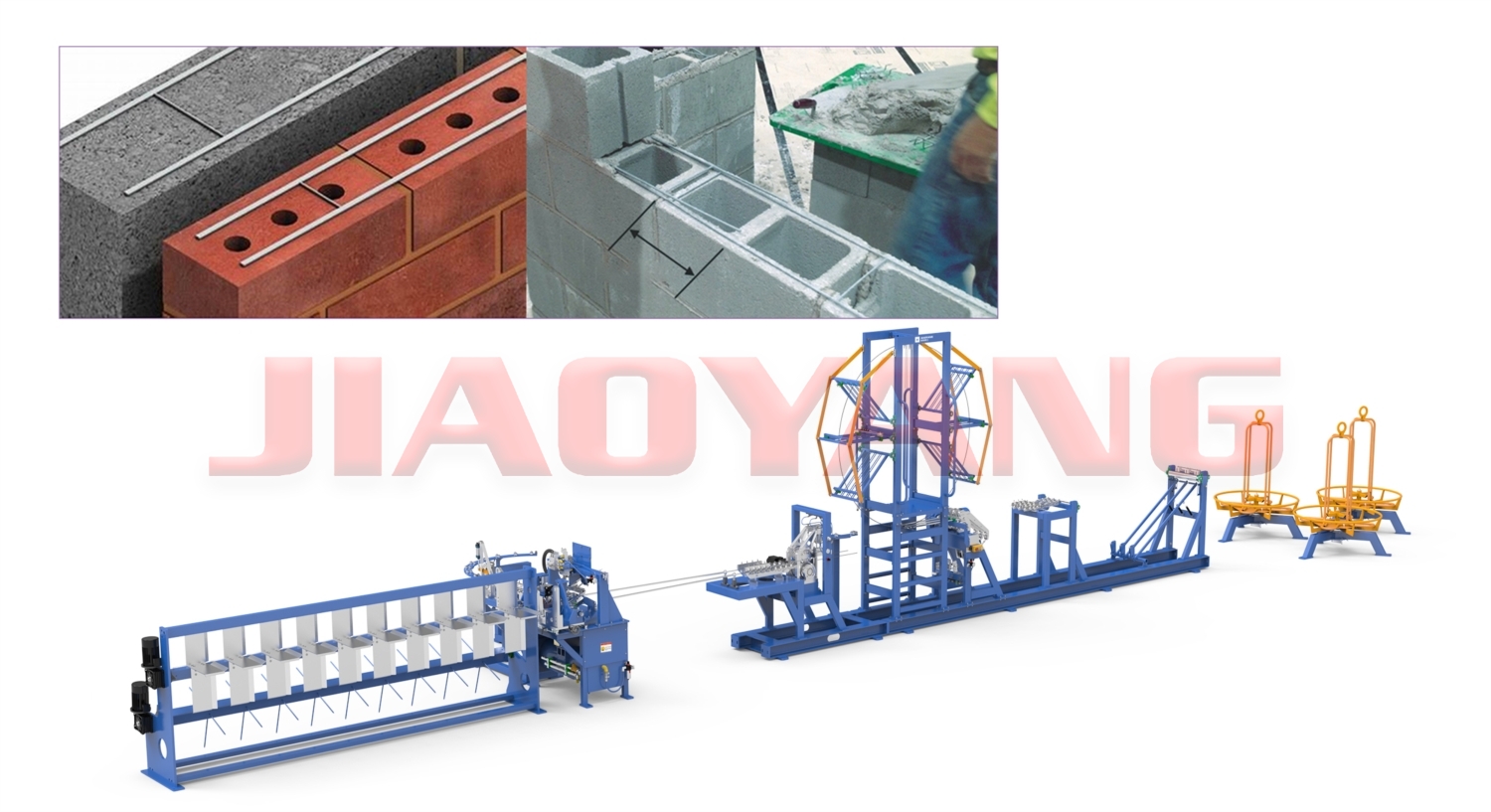

ZD-01 Brickforce Mesh Welding Machine

This model welds low-carbon and galvanized steel wire (φ1.6–3mm) at 60–80 welding cycles per minute. It forms adjustable double-sided rolled mesh, fitted with 4 electrode sets and a 36KVA transformer for steady, efficient brickforce mesh production.

Equipment Specification Table and Layout Drawing

ZD-01 Brickforce Mesh Welding Machine - Video Link

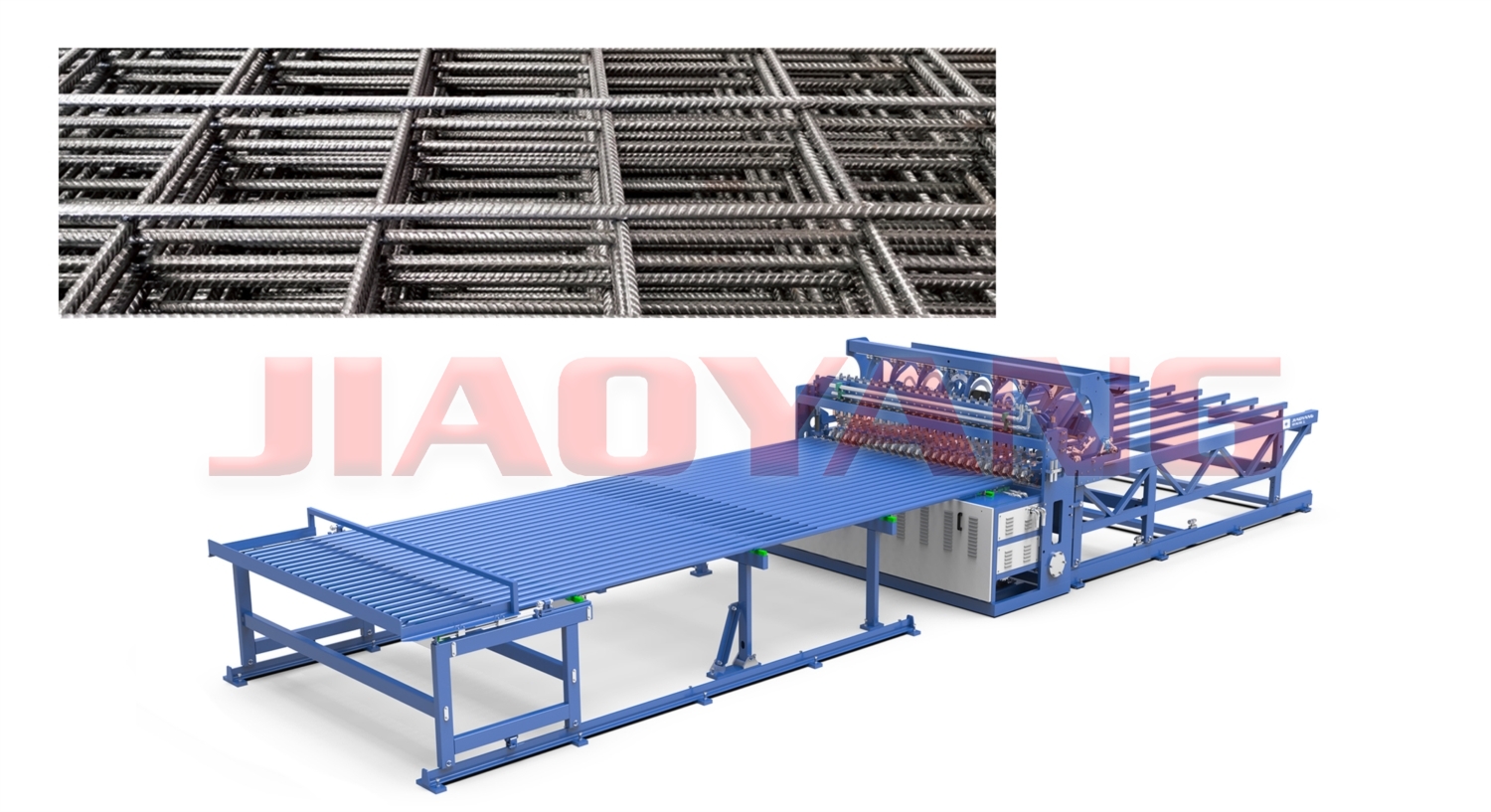

D-01 Reinforcement Mesh Welding Machine

Model GWC3300D-01 fits 6–12mm wires, with 32 electrode sets and dual 250KVA transformers. It runs at 10 welds per minute, producing 1–6m mesh panels with adjustable wire spacing for steel mesh fabrication.

Equipment Specification Table and Layout Drawing

D-01 Reinforcement Mesh Welding Machine - Video Link

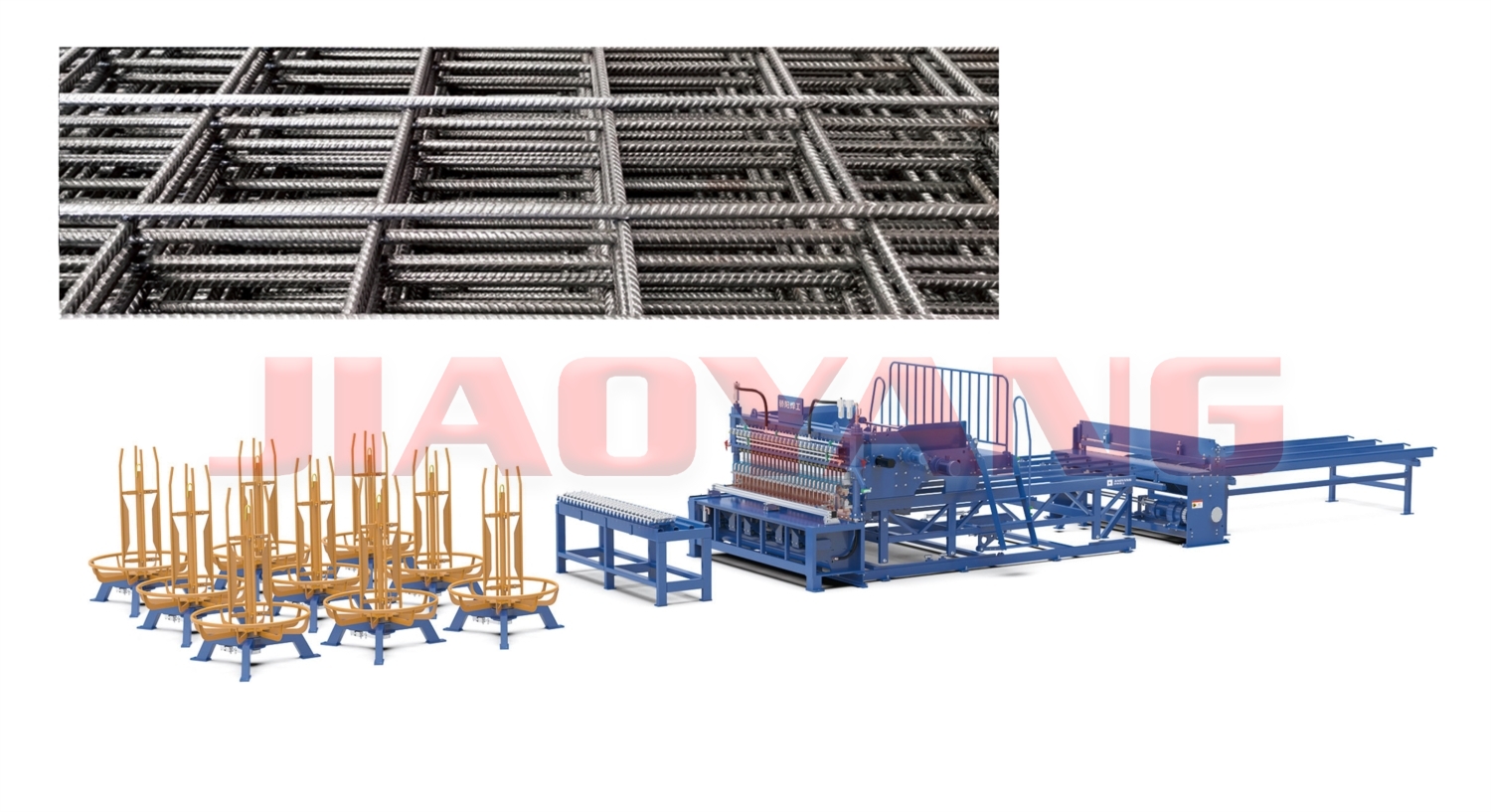

D-02 Reinforcement Mesh Production Line

This production line supports 2500/3300mm mesh width, 60-80 welding cycles per minute. It processes 5–12mm wire, outputs 12m mesh panels, equipped with full automatic feeding, welding and mesh unloading units.

Equipment Specification Table and Layout Drawing

D-02 Reinforcement Mesh Production Line - Video Link

C-02 Reinforcement Mesh Production Line

The 1200/1600/2500C-02 line makes mesh 1200–2500mm wide with 3–8mm wires. It runs 50-70 welds per minute, equipped with payoff, straightening, welding, pulling and cutting units for 6m mesh panels.

Equipment Specification Table and Layout Drawing

C-02 Reinforcement Mesh Production Line - Video Link

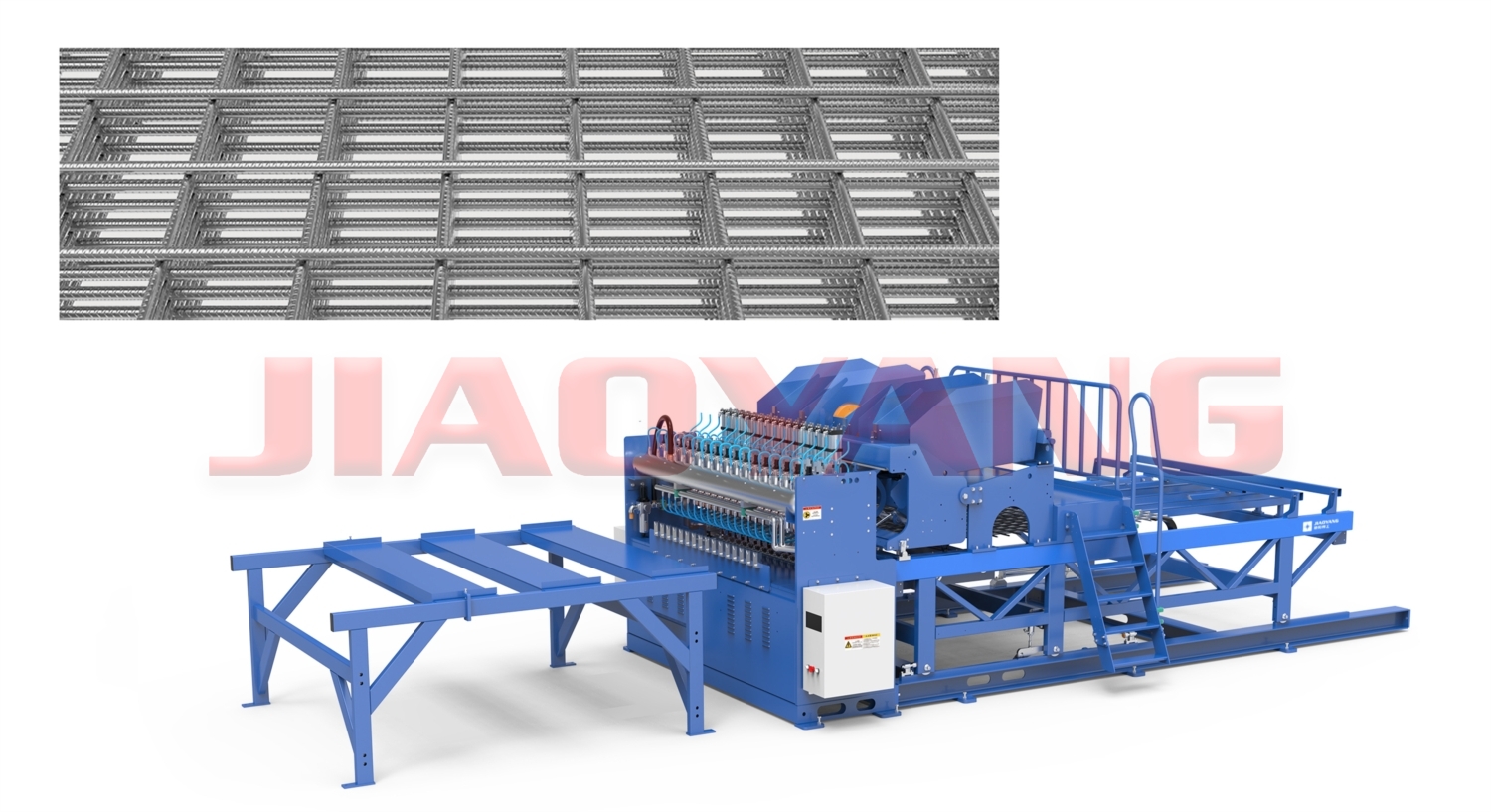

C-01 Reinforcement Mesh Welding Machine

Model 1600/2500C-01 welds 3–8mm wires into panel mesh. It has adjustable wire spacing, 60–80 welding cycles per minute, multiple transformers/electrodes, with standard feeding, welding and pulling assemblies.

Equipment Specification Table and Layout Drawing

C-01 Reinforcement Mesh Welding Machine - Video Link

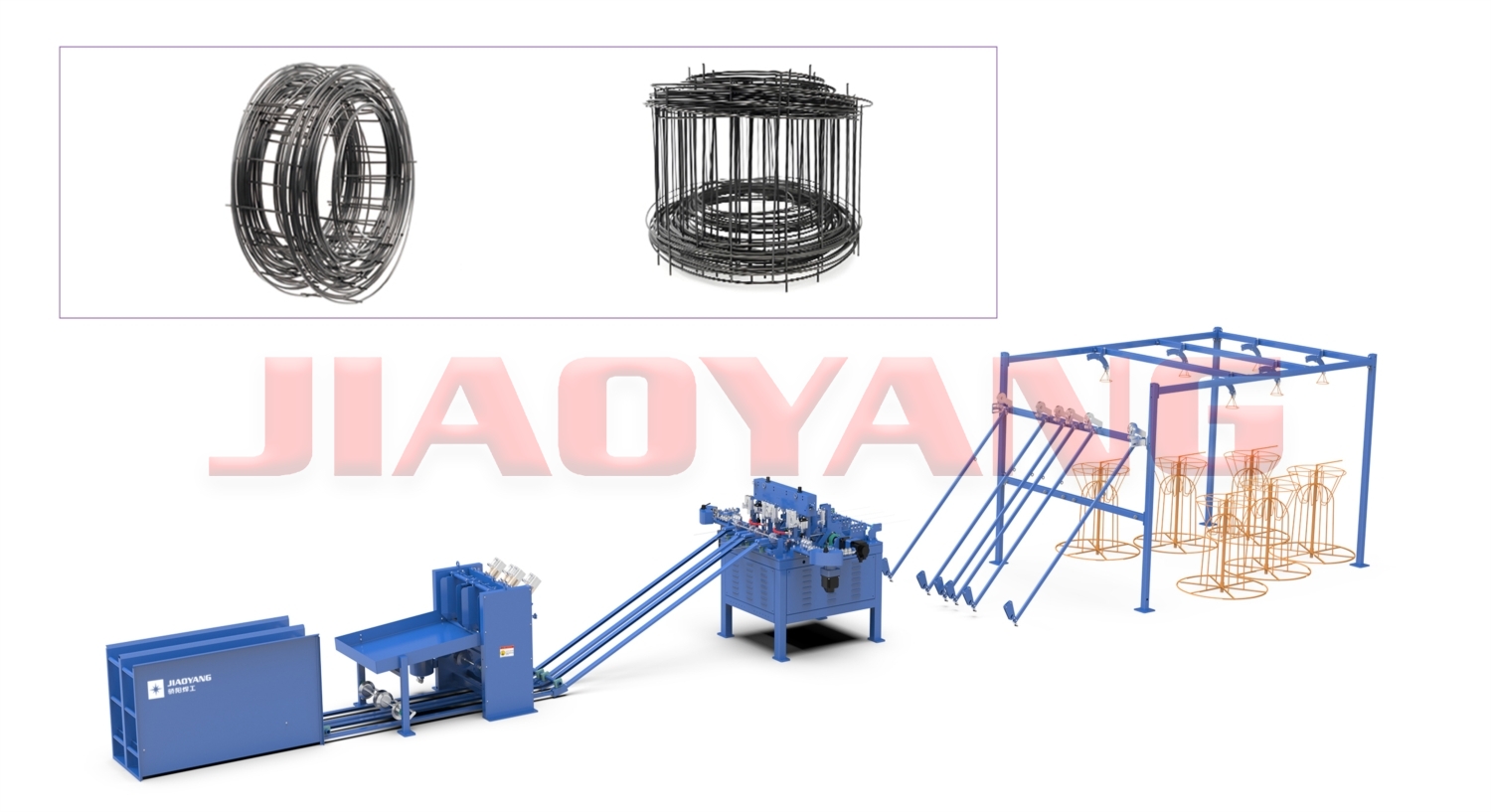

B-02 Wire Mesh Welding Machine

The B-02 wire mesh welding machine processes low-carbon and galvanized wires of 2.5–5mm diameter. Equipped with 24 electrode sets and four 125KVA transformers, it runs 60 to 80 welding cycles every minute. It makes roll or panel mesh with adjustable width and wire spacing for diverse key practical production demands.

Equipment Specifications and Layout Drawing

B-02 Wire Mesh Welding Machine — Video Link
