From the basic system to the complex high-performance factory
Jiaoyang reinforcing mesh systems are designed for the flexible and economical production of reinforced concrete mesh. An extensive range of modules allows us to adapt the level of automation to customer requirements.

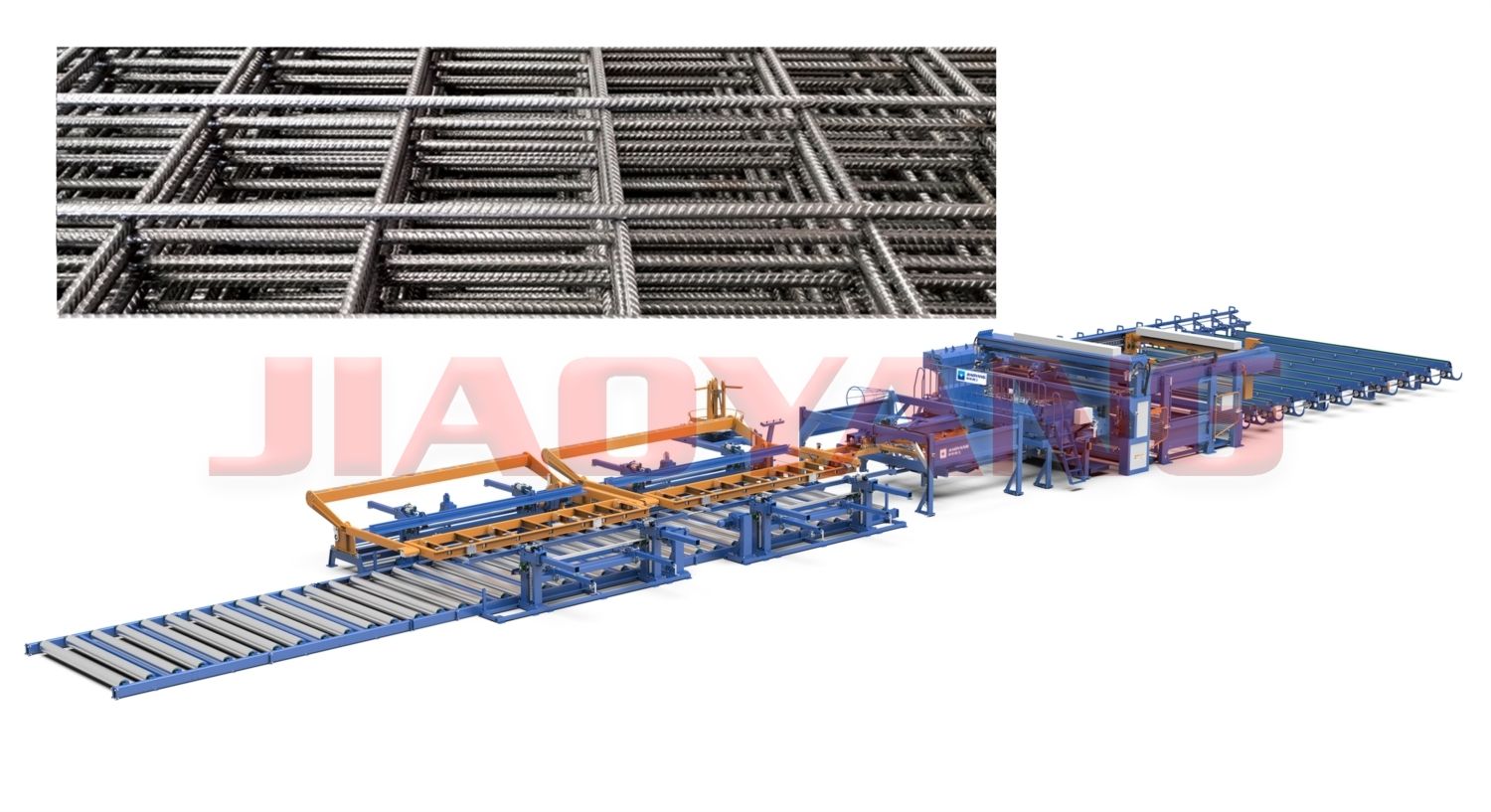

D-07 Intelligence Concrete Reinforcement Mesh Welding Line
Advanced servo-driven system with intelligent fault diagnosis. Produces perfectly welded mesh panels at high speed. Minimal manual intervention, maximum output stability. Engineered for durability, built for seamless integration into your existing production workflow.

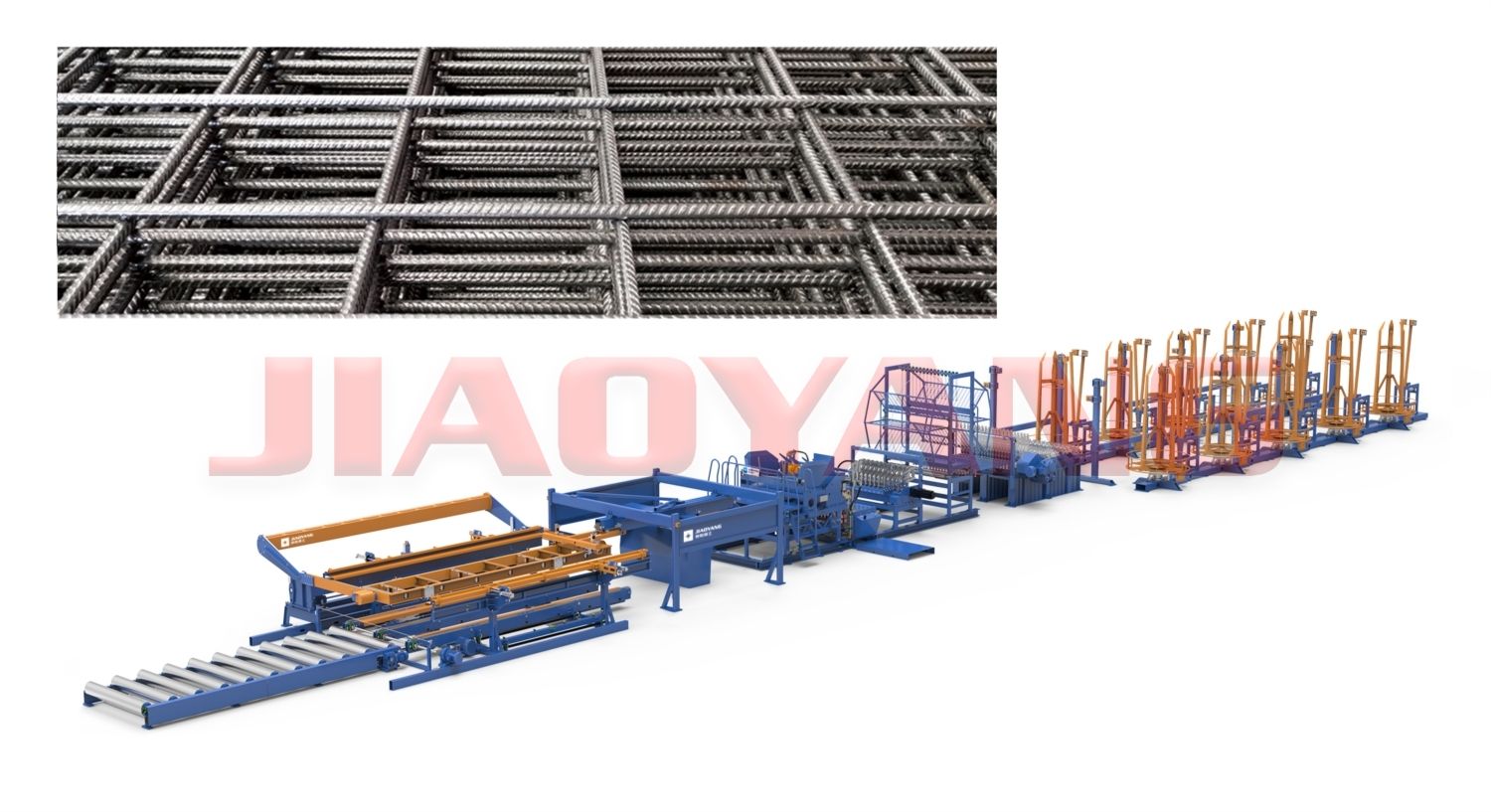

This D-06A welding line fabricates reinforcement mesh up to 3300mm wide for 5–12mm wires. It runs 60–90 welding cycles per minute with full automatic feeding, cutting and mesh handling systems to produce 2–12m long panels efficiently.

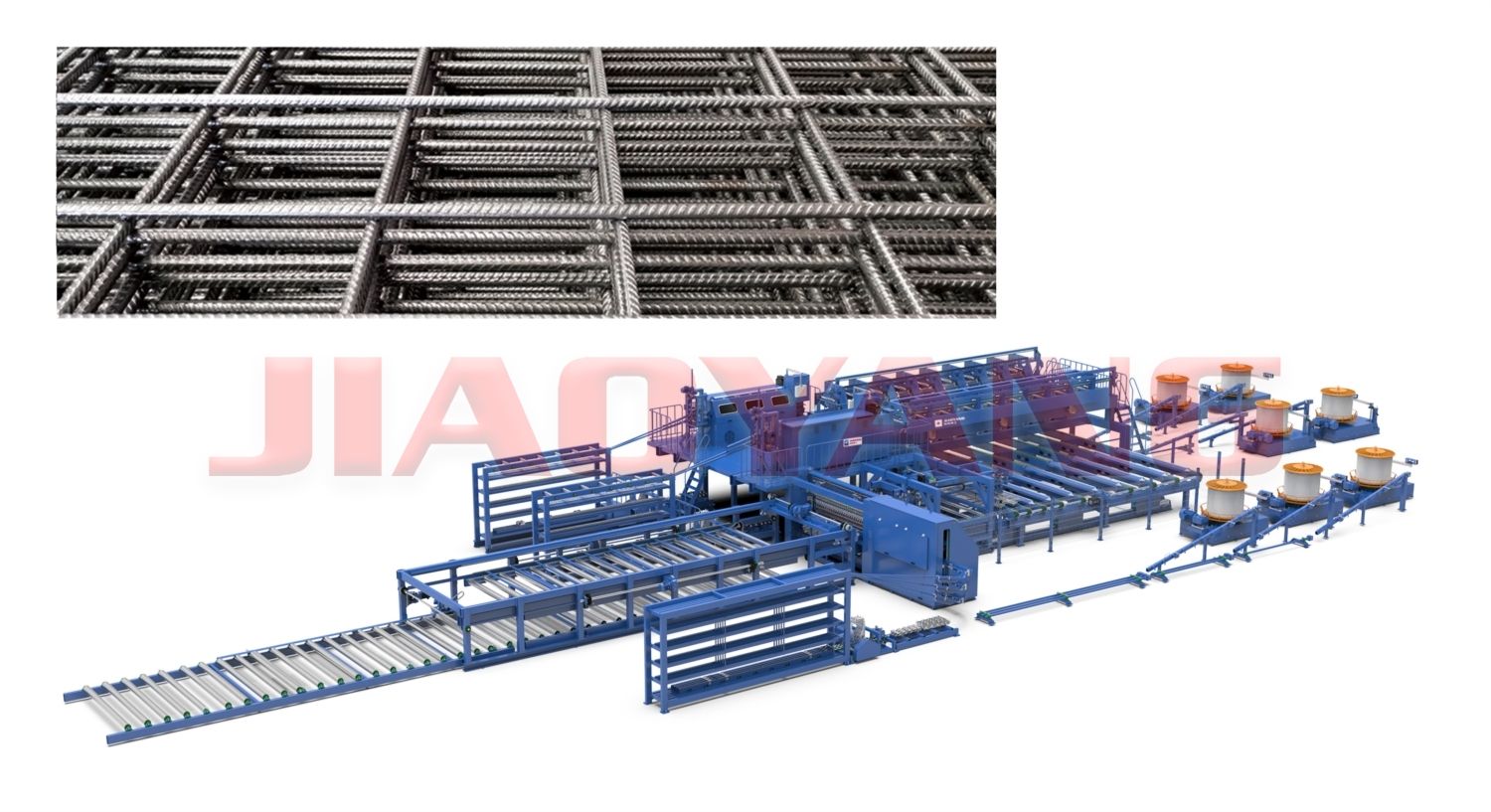

D-08 Intelligence Concrete Reinforcement Mesh Welding Line
Precision-driven, fully automated welding for high-strength rebar meshes. Smart control ensures consistent quality, reduced waste, and rapid production—delivering superior reinforcement solutions for modern construction projects worldwide.

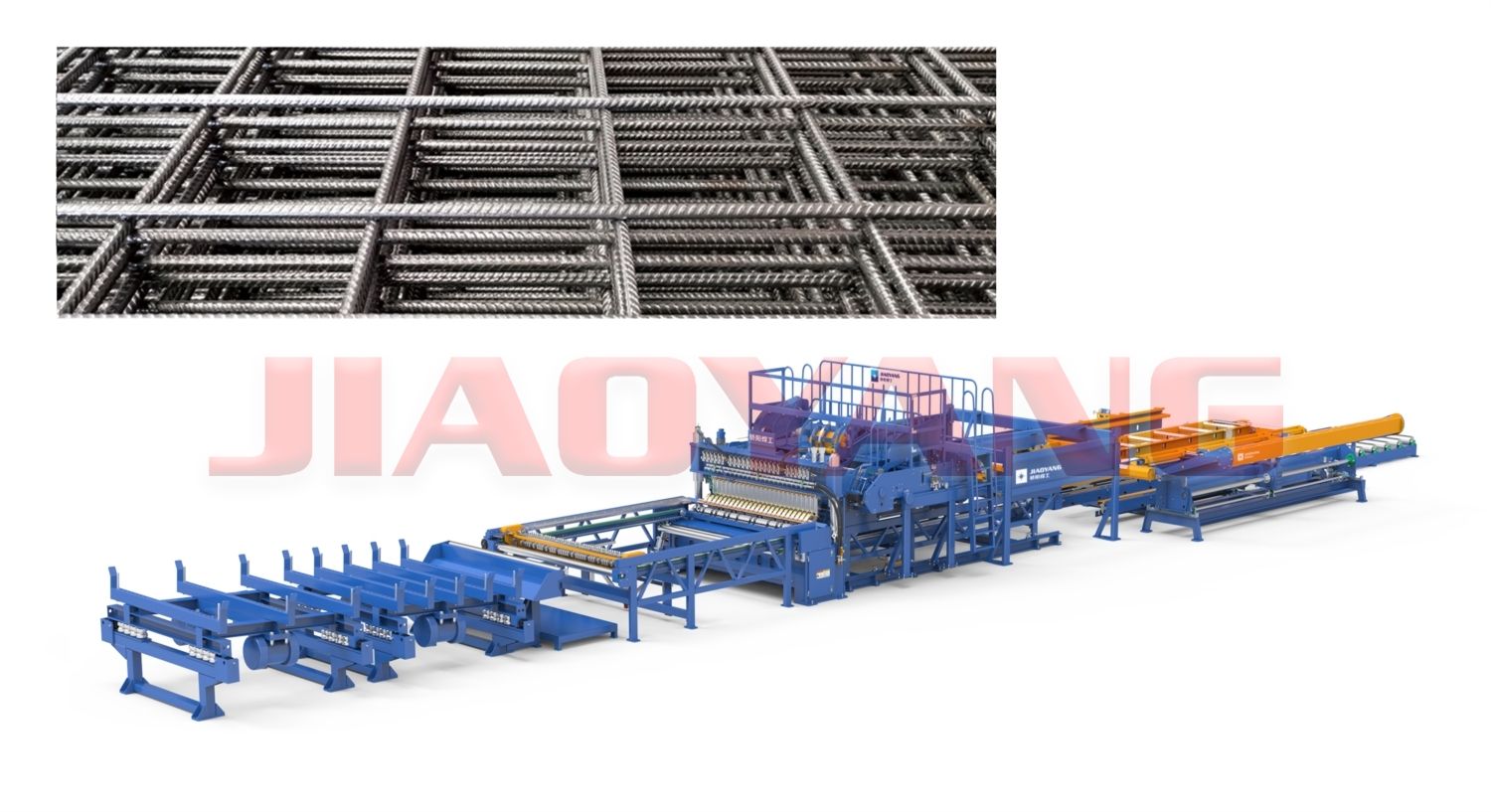

C-04 Intelligence Concrete Reinforcement Mesh Welding Line
Precision-driven, fully automated welding for high-strength rebar meshes. Smart control ensures consistent quality, reduced waste, and rapid production—delivering superior reinforcement solutions for modern construction projects worldwide.

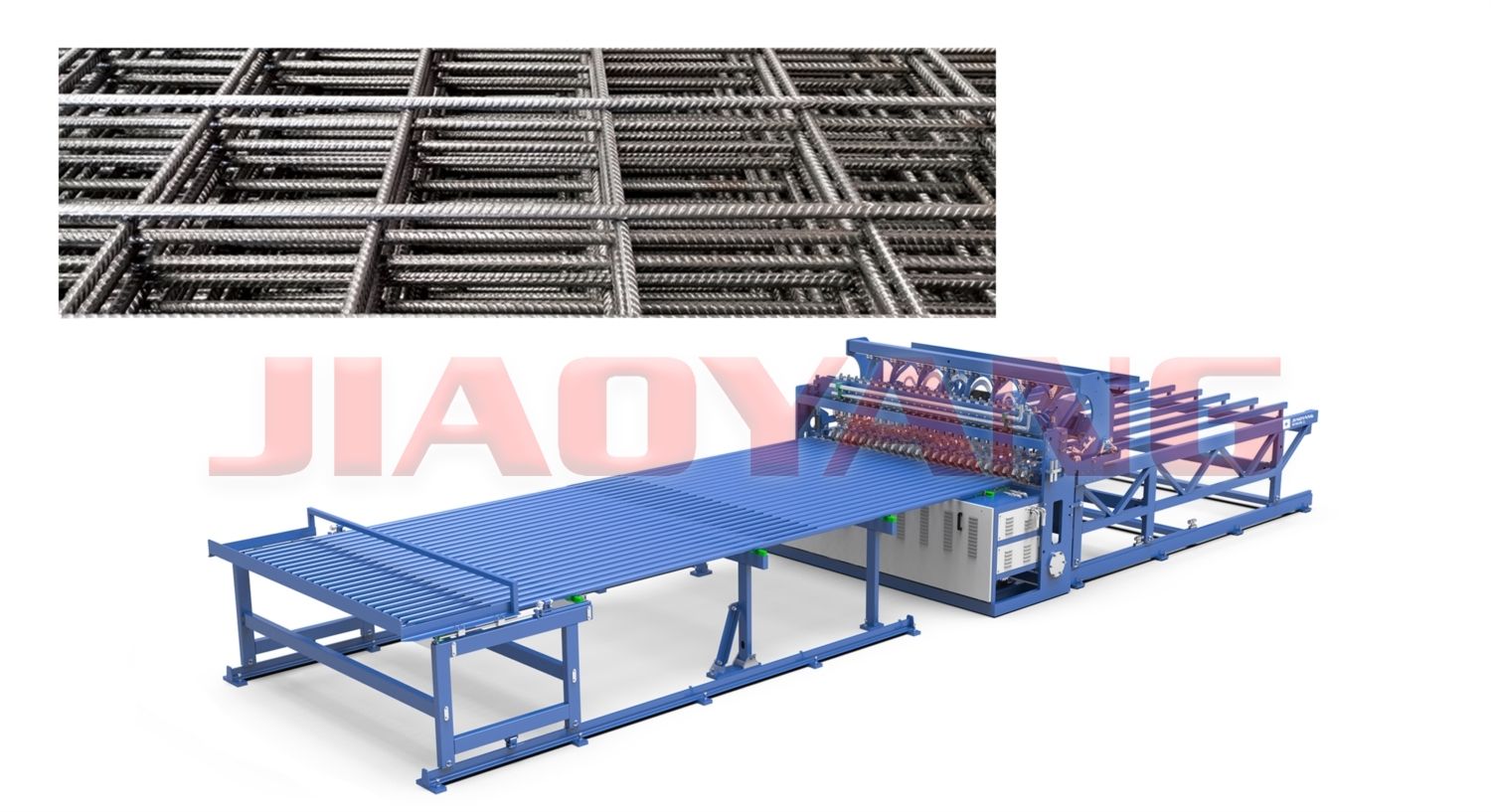

This D-05 welding line produces mesh 2500/3300mm wide, with 5–12mm wires. It runs 70–90 welds per minute, equipped with full standard units to fabricate long concrete reinforcement mesh panels efficiently.

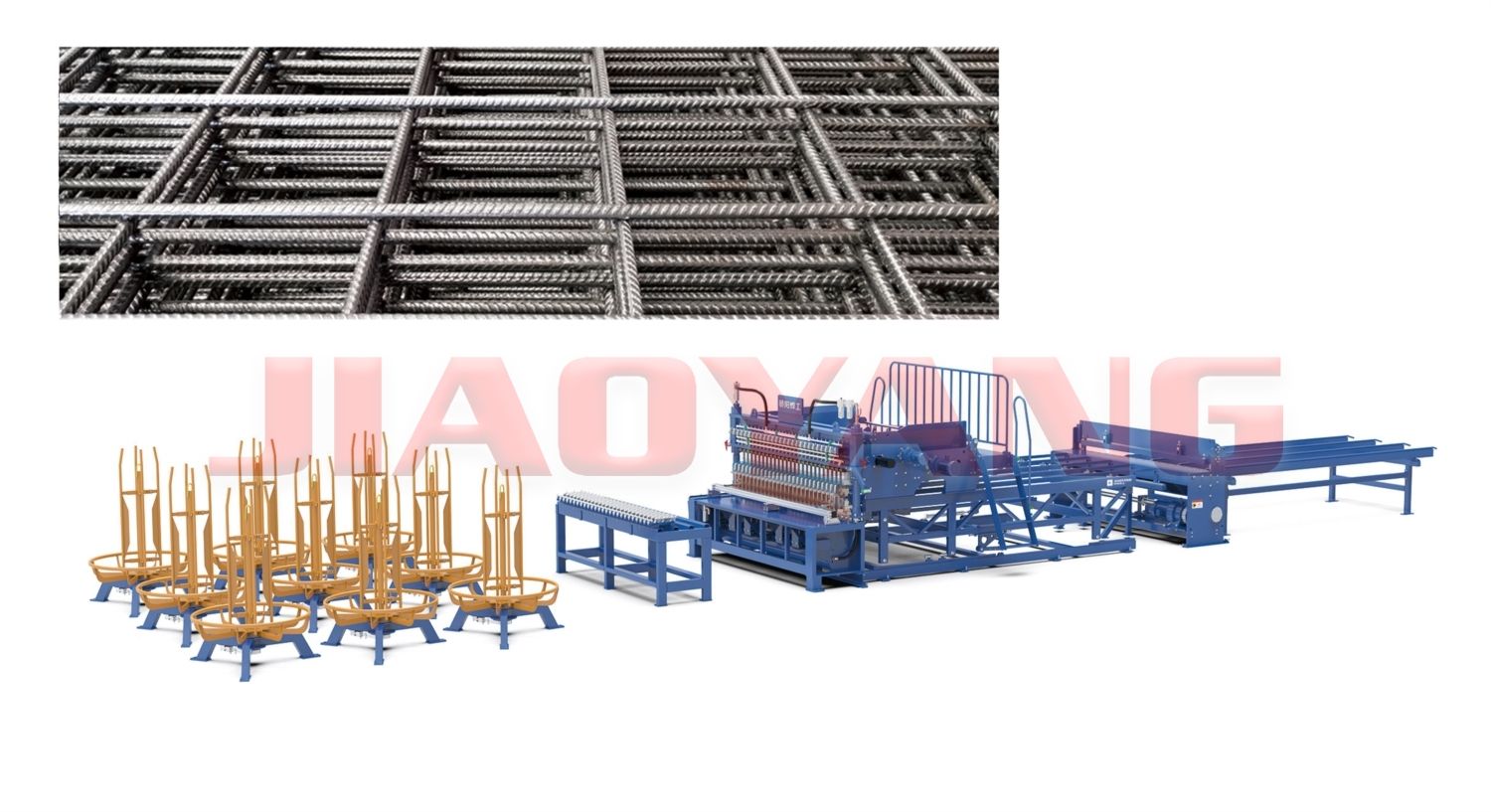

Modeled C-03, this welding line makes 6m mesh with 3–8mm wires, welding 70–100 times per minute. Its full standard configuration ensures stable, high-efficiency production of reinforcing mesh for concrete works.

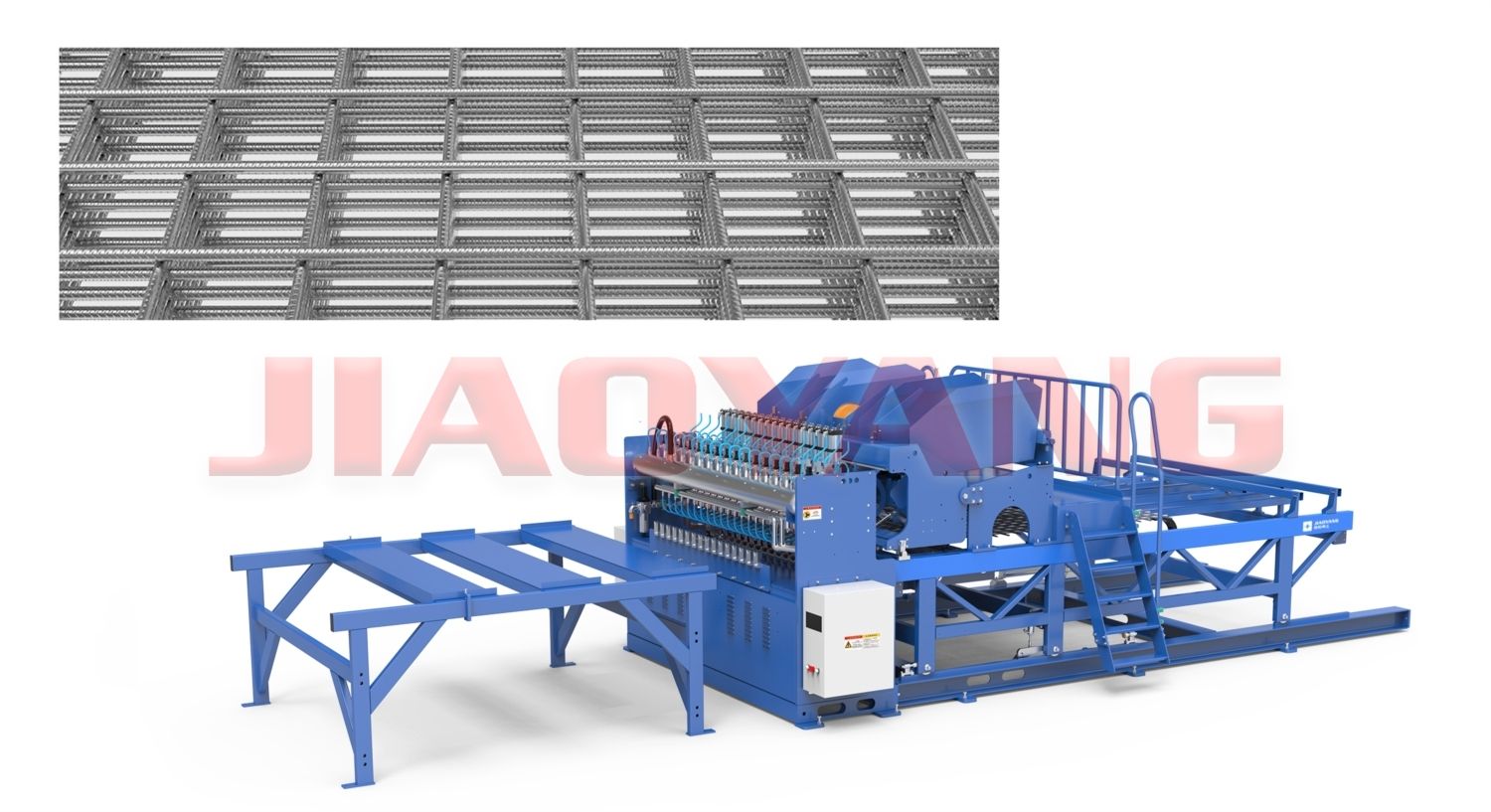

This production line supports 2500mm mesh width, 60-80 welding cycles per minute. It processes 3–8mm wire, outputs 6m mesh panels, equipped with full automatic feeding, welding and mesh unloading units.

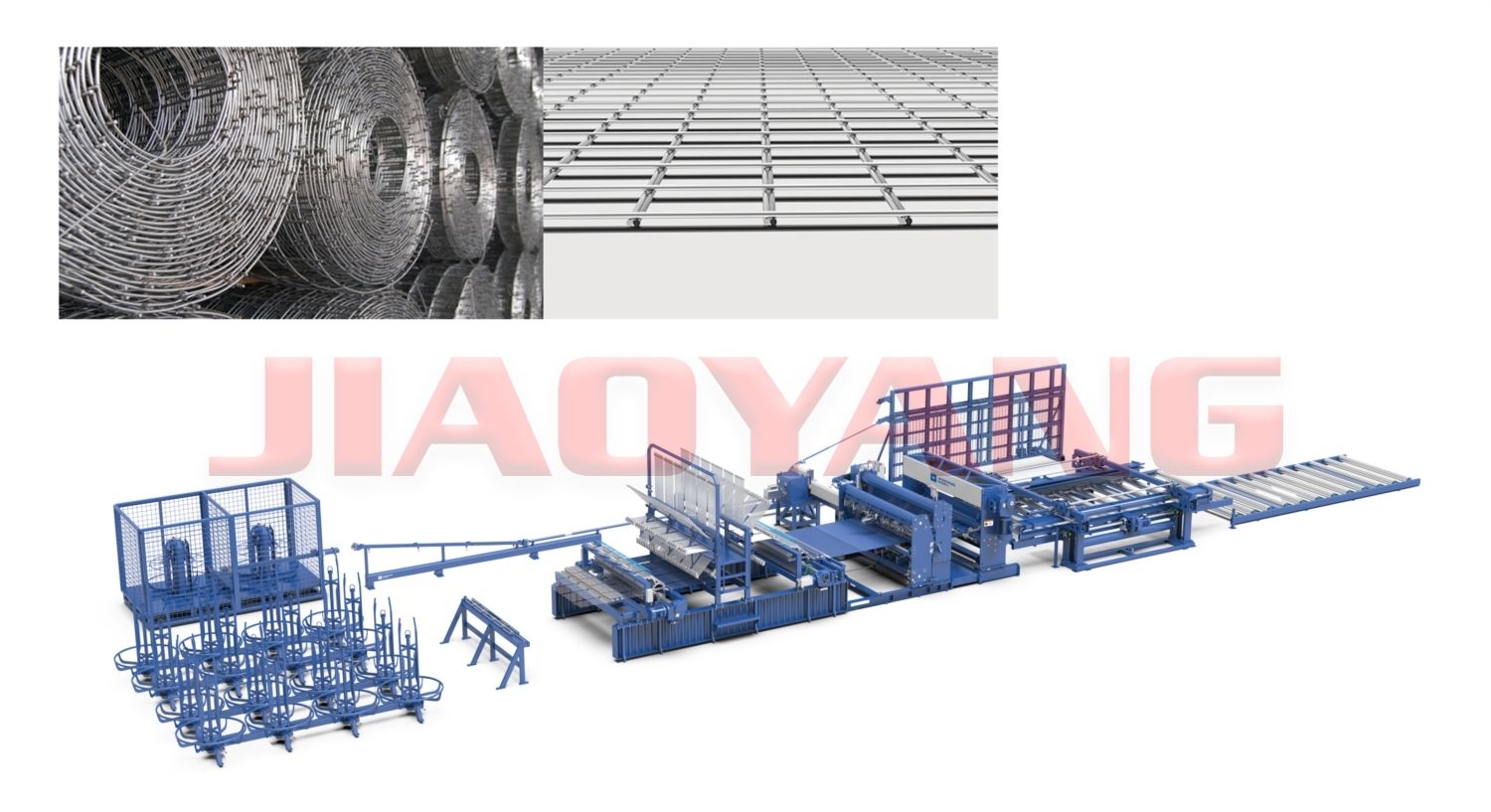

Model 1600/2500C-01 welds 3–8mm wires into panel mesh. It has adjustable wire spacing, 60–80 welding cycles per minute, multiple transformers/electrodes, with standard feeding, welding and pulling assemblies.
The 1200/1600/2500C-02 line makes mesh 1200–2500mm wide with 3–8mm wires. It runs 50-70 welds per minute, equipped with payoff, straightening, welding, pulling and cutting units for 6m mesh panels.
This production line supports 2500/3300mm mesh width, 60-80 welding cycles per minute. It processes 5–12mm wire, outputs 12m mesh panels, equipped with full automatic feeding, welding and mesh unloading units.
Model GWC3300D-01 fits 6–12mm wires, with 32 electrode sets and dual 250KVA transformers. It runs at 10 welds per minute, producing 1–6m mesh panels with adjustable wire spacing for steel mesh fabrication.
