Industrial Mesh Welding Machine ZW

Efficient manufacturing of industry and fence mesh for all lot sizes

Jiaoyang industrial mesh systems are used for the production of dimensionally accurate meshwork for a wide variety of applications. Industrial mesh may be used to produce shop-, exhibition- and warehouse equipment as well as trays for domestic appliances.

Flat meshes used as gratings, baskets or cages are typical products made out of industrial mesh. Also, shopping carts, shopping baskets, goods displays, shelves and trays in refrigerators, stoves and dishwashers are typical products using industrial mesh.

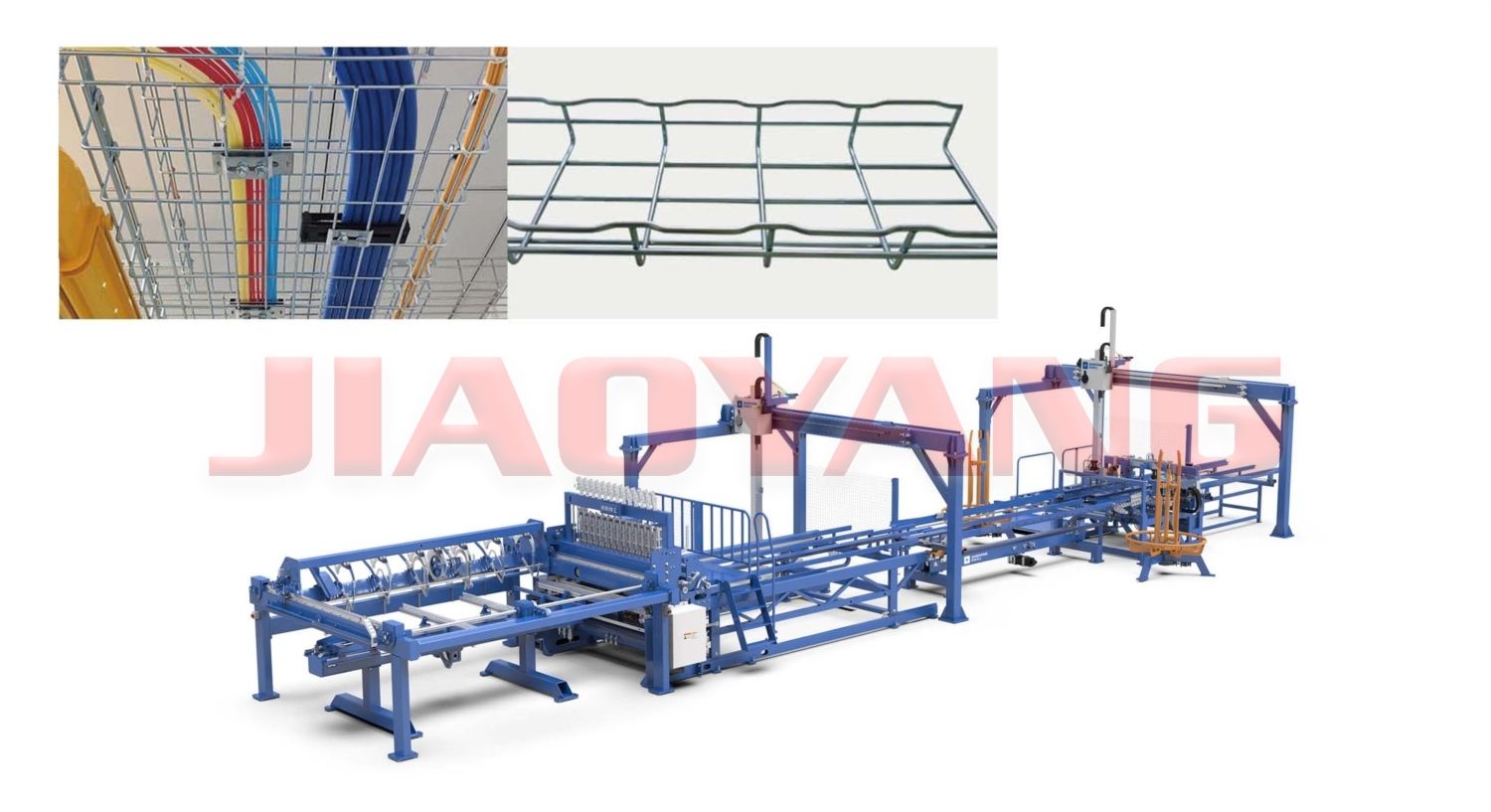

ZWB-02+ZWC-01 Intelligent Cable Tray Welding Line

This welding line processes low-carbon steel wire of 4–6 mm. It features 31 electrode sets, dual transformers, 30-pcs/min welding speed, producing 3m mesh panels with automatic feeding, pulling and stacking functions.

Equipment Specification Table and Layout Drawing

ZWB-02+ZWC-01 Intelligent Cable Tray Welding Line - Video Link

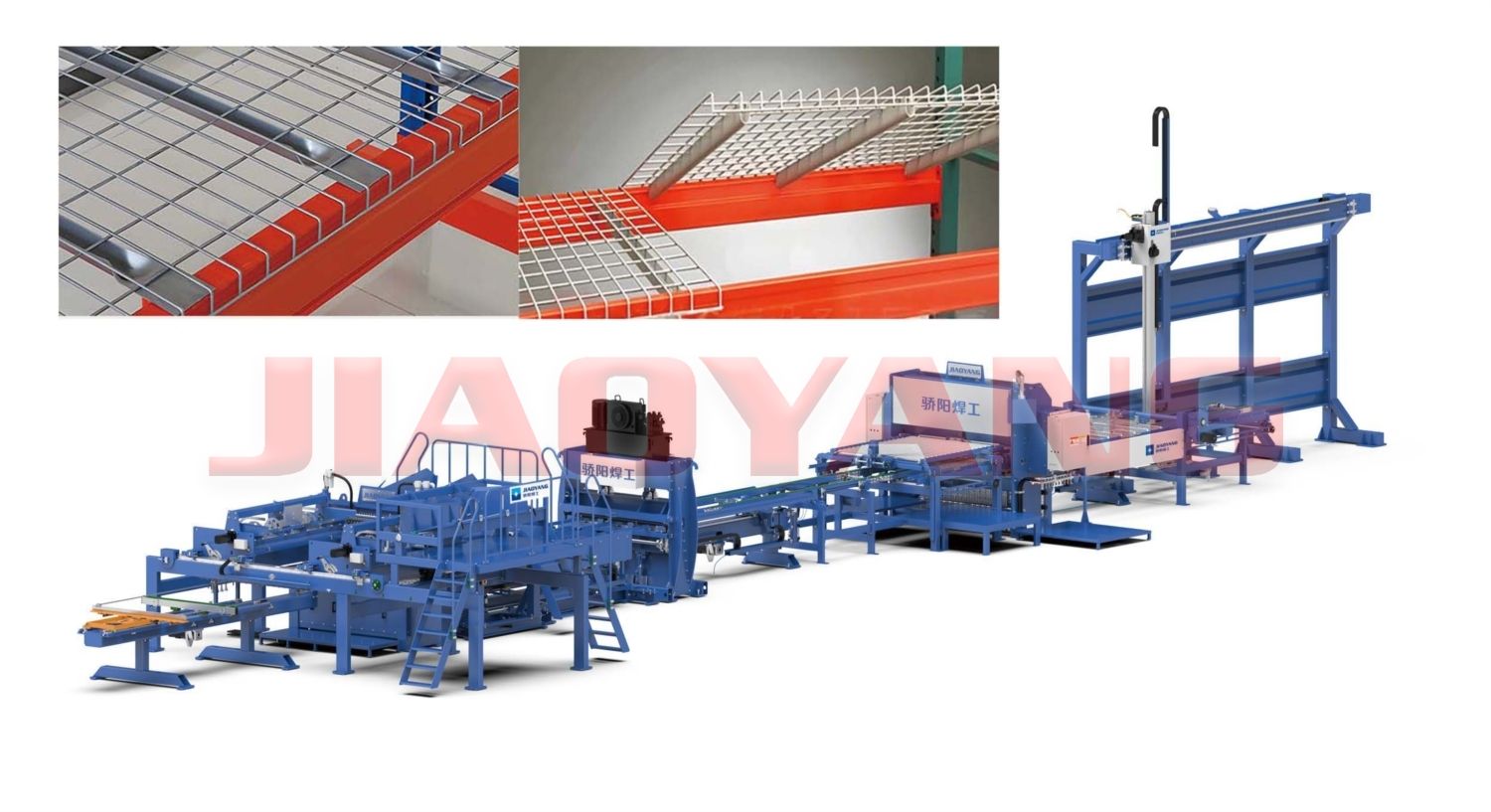

ZWB-01+ZWD-01 Intelligent Wire Decking Welding Line

It processes 3–6mm low-carbon steel wire, produces meshes at 3–4 pieces per minute, and comes with full automatic feeding, bending, stacking modules for efficient mesh production.

Equipment Specification Table and Layout Drawing

ZWB-01+ZWD-01 Intelligent Wire Decking Welding Line - Video Link

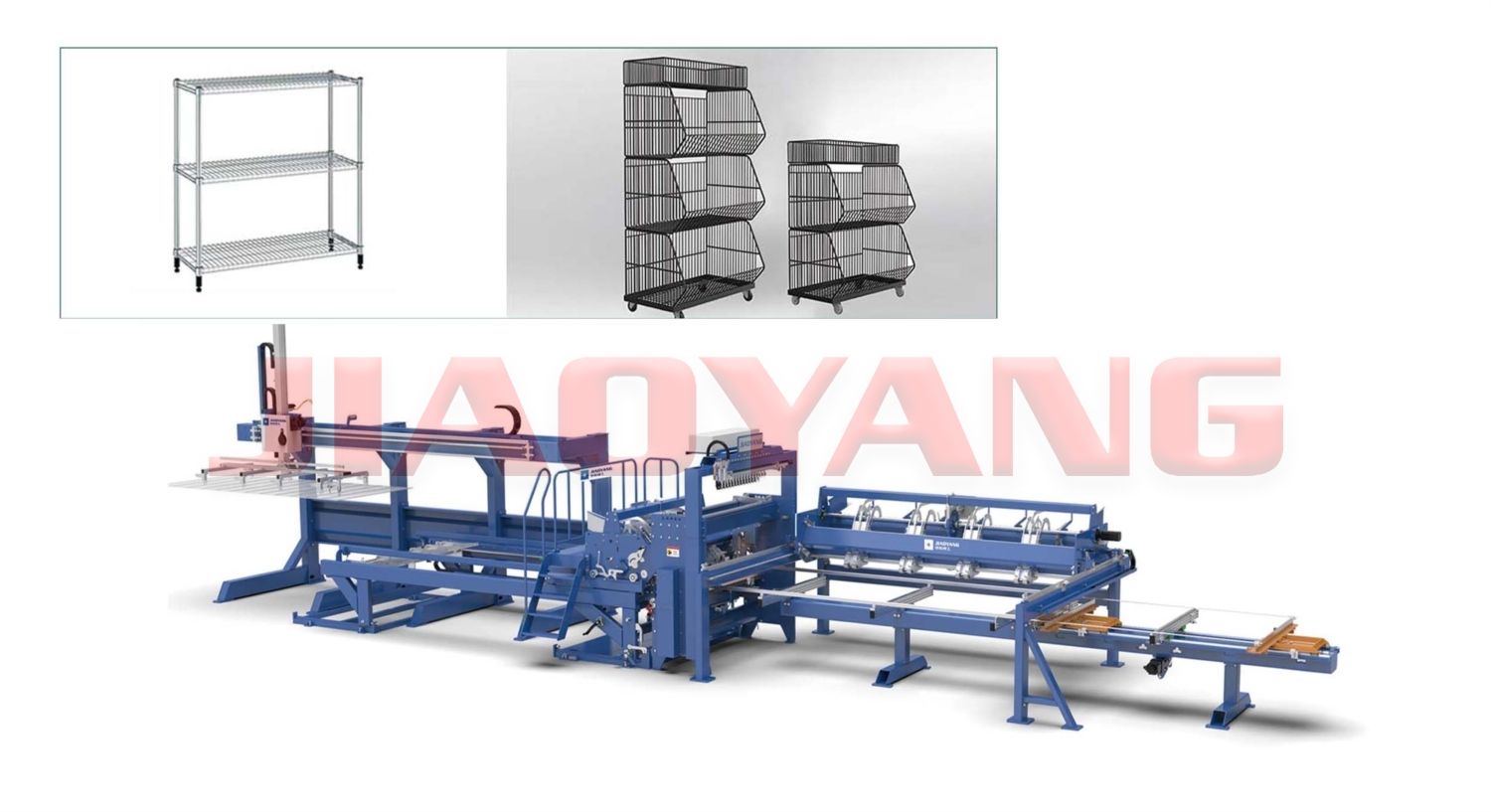

ZWB-03 Industrial Storage Mesh Welding Line

This automated welding line produces low-carbon steel mesh up to 1600mm wide. Fitted with 14 MFDC 100KVA transformers, it runs at 80 welds/min, processes 2–8mm wire, and comes with full standard assemblies for stable mesh panel manufacturing.

Equipment Specification Table and Layout Drawing

ZWB-03 Industrial Storage Mesh Welding Line - Video Link

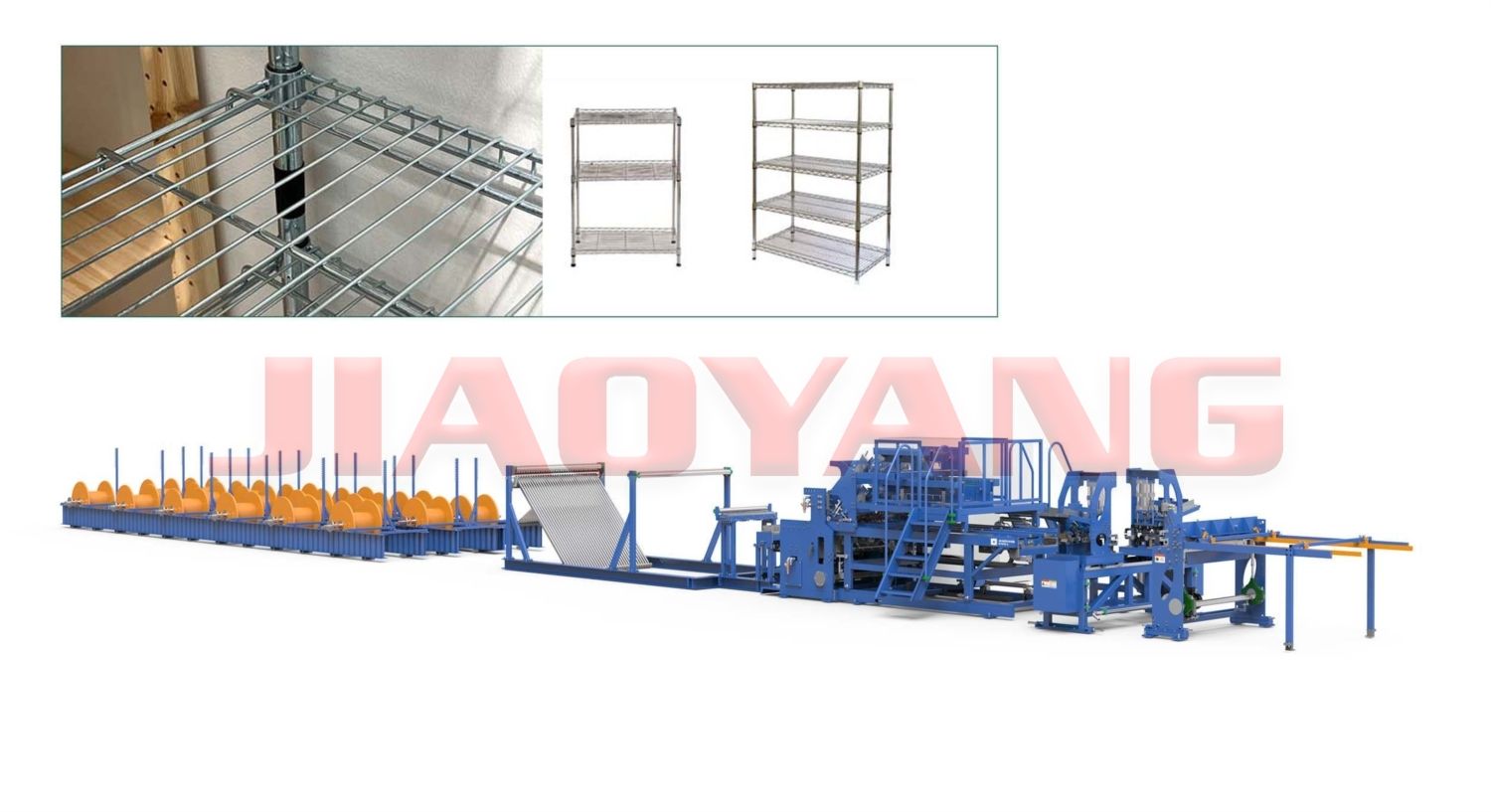

ZWA-01 Storage Rack Mesh Welding Line

Modeled ZWA-01, this welding line produces panel mesh from low-carbon steel wire. It runs at 60 welds per minute, with complete standard configurations for automatic mesh forming, cutting and stacking.

Equipment Specification Table and Layout Drawing

ZWA-01 Storage Rack Mesh Welding Line - Video Link
